How to Do a UI Teardown: Analyze Any Product's Design Systematically

What is a UI Teardown?

Why Perform a UI Teardown?

• Identify friction points: Spot confusing navigation, unclear labels, or poor contrast.
• Improve conversions: A teardown of an e-commerce checkout might reveal unnecessary steps.
• Learn from best practices: Analyzing Slack’s menu structure can inspire your own app.
• Build design rationale: Justify changes with evidence from the teardown.

Step-by-Step Process for a UI Teardown

#### 1. Define Scope & Goals

• Are you analyzing a single screen or a user flow (e.g., sign-up)?
• What specific metrics matter? Task completion rate, error prevention, or visual hierarchy?

#### 2. Capture the UI

• Take clean screenshots of the interface. Use tools like CleanShot or browser full-page capture.
• For interactive elements, record a short video or use Figma’s prototype mode.

#### 3. Heuristic Evaluation

Assess each UI element against established principles. For example:

• Visibility of system status: Does the search bar show a loading spinner?
• Match between system and the real world: Does the trash icon mean delete?
• User control and freedom: Can users undo an action?

#### 4. Deconstruct into Components

Break the UI into discrete parts:

• Navigation: Menu items, breadcrumbs, tabs.
• Content cards: Title, description, image, calls-to-action.
• Forms: Labels, input fields, validation messages.
• Feedback: Success/error toasts, modals.

#### 5. Analyze Visual Hierarchy

• Scale: Which element draws the eye first? (e.g., a hero image vs. a small button)
• Color: Are primary actions distinct (e.g., blue vs. gray)?
• Spacing: Consistent margins? padding: 16px everywhere?

#### 6. Document Findings with Annotations

Use a tool like Figma or Markup Hero to overlay comments directly on screenshots. Example annotation:

• “The ‘Submit’ button is low contrast against the background (WCAG 2.0 AA fails).”

#### 7. Prioritize Issues

Categorize each finding:

• Critical: Broken flow or inaccessible elements.
• Major: Confusing labels or misaligned hierarchy.
• Minor: Inconsistent icon style.

#### 8. Suggest Improvements

For each issue, propose a concrete fix. For instance:

• “Replace the hamburger menu with a persistent sidebar for desktop.”
• “Increase font size from 14px to 16px for body text to meet accessibility standards.”

Real-World Example: Teardown of a Project Management App

Let’s analyze Trello’s board view:

Strengths:

• Clear visual hierarchy: board title > list title > card summary.
• Drag-and-drop feedback is instant (color change on hover).
• Consistent card shape and shadow across lists.

Weaknesses:

• On mobile, the “Add list” button is hidden behind a menu—violates recognition over recall.
• Card descriptions are truncated without a “Show more” link; users might miss details.
• Color labels lack text alternatives for colorblind users.

Improvements:

• Expose a “+” button permanently on mobile bottom bar.
• Add an expand/collapse icon on each card.
• Include label patterns (e.g., stripes) alongside colors.

How InspoAI Can Accelerate Your UI Teardown

InspoAI is an AI-powered UI generator that can transform your teardown findings into polished, responsive React + Tailwind CSS code instantly. Here’s how:

• Generate a Clean React Layout: Describe the improved UI (e.g., “Create a structured card layout with Denton font for headings, consistent spacing, and a responsive grid”), and InspoAI outputs ready-to-use components.
• Modify Based on Heuristics: If your teardown revealed weak visual hierarchy, prompt InspoAI to “Increase the weight of the primary button”—it adjusts the CSS in real-time.
• Export Responsive Code: Once satisfied, export the React + Tailwind CSS code with all spacing and typography defined (e.g., padding: 1.5rem, font-family: 'Denton', serif).

#### Example Prompt for InspoAI:

> “Create a clean React layout based on the how to do ui teardown guidelines. Include structured cards, Denton font styling, and responsive layout spacing. Each card should have a title, description, and action button. Use a 3-column grid on desktop, 2 on tablet, and 1 on mobile. Apply consistent 16px padding and 8px gap.”

InspoAI will return a ready-to-use component that embodies the best practices from your teardown, saving hours of manual coding.

Common Mistakes in UI Teardowns

• Subjective bias: “I don’t like blue” is not valid. Always reference heuristics.
• Ignoring context: A sparse design might be intentional for a minimalistic brand.
• Not considering accessibility: Always test with WAVE or axe tools.

Conclusion

A UI teardown is a powerful exercise to improve any digital product. By following a structured process, you uncover hidden usability issues and learn from both good and bad examples. Tools like InspoAI turn those insights into tangible code, bridging the gap between critique and implementation. Start by tearing down a page you use daily—you’ll be surprised what you find.

Real-World UI Curation Gallery

Below is a curated collection of production interface layouts and design patterns:

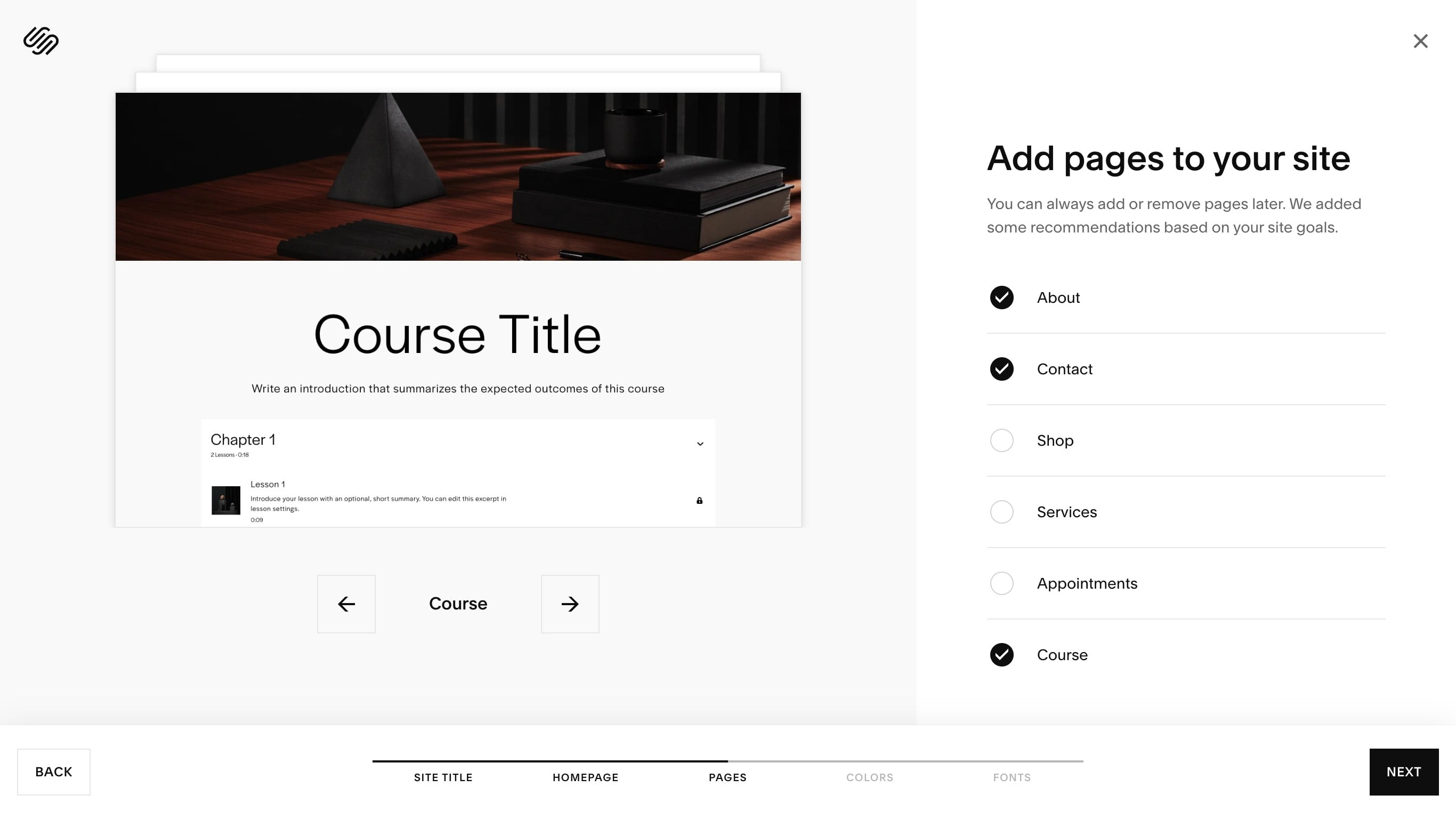

Squarespace - Interface Details

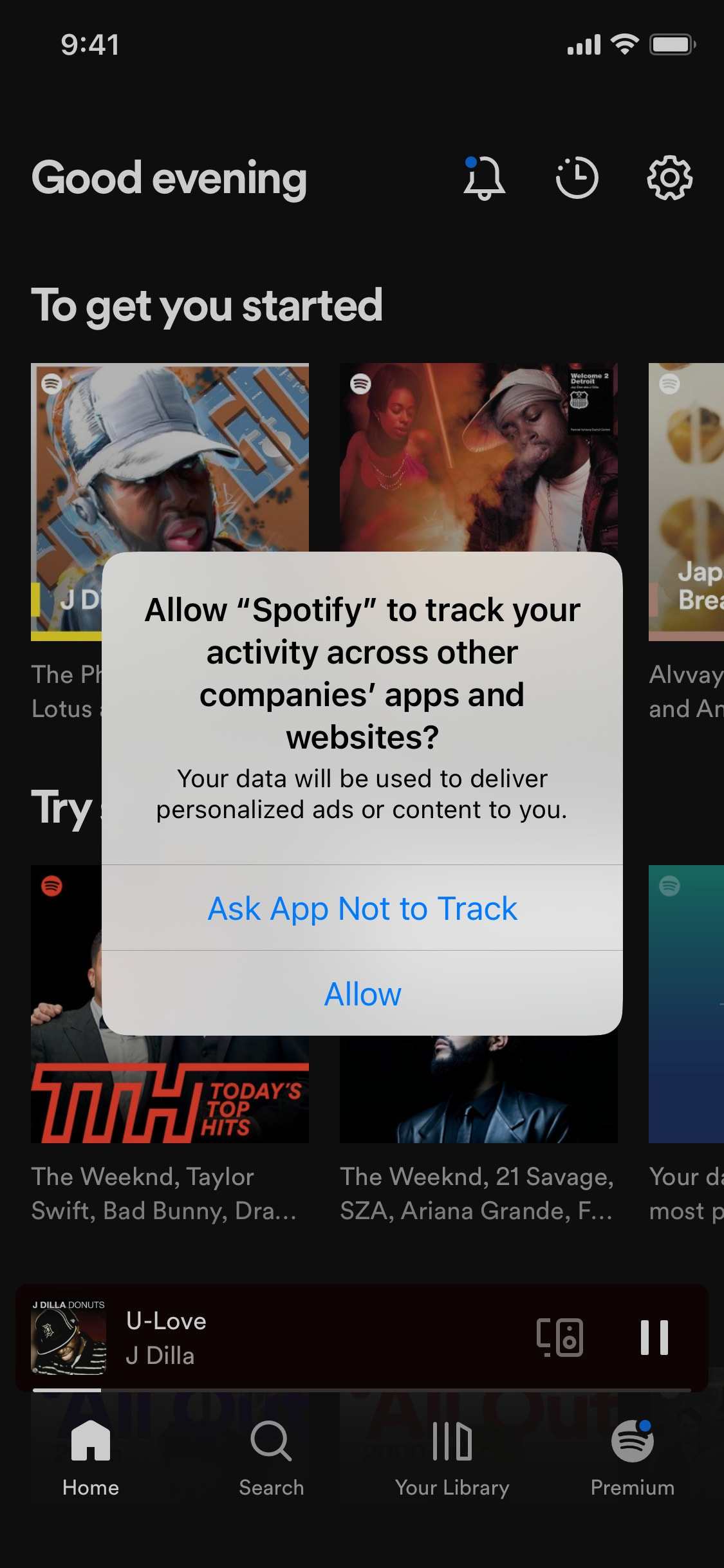

Spotify - Interface Details

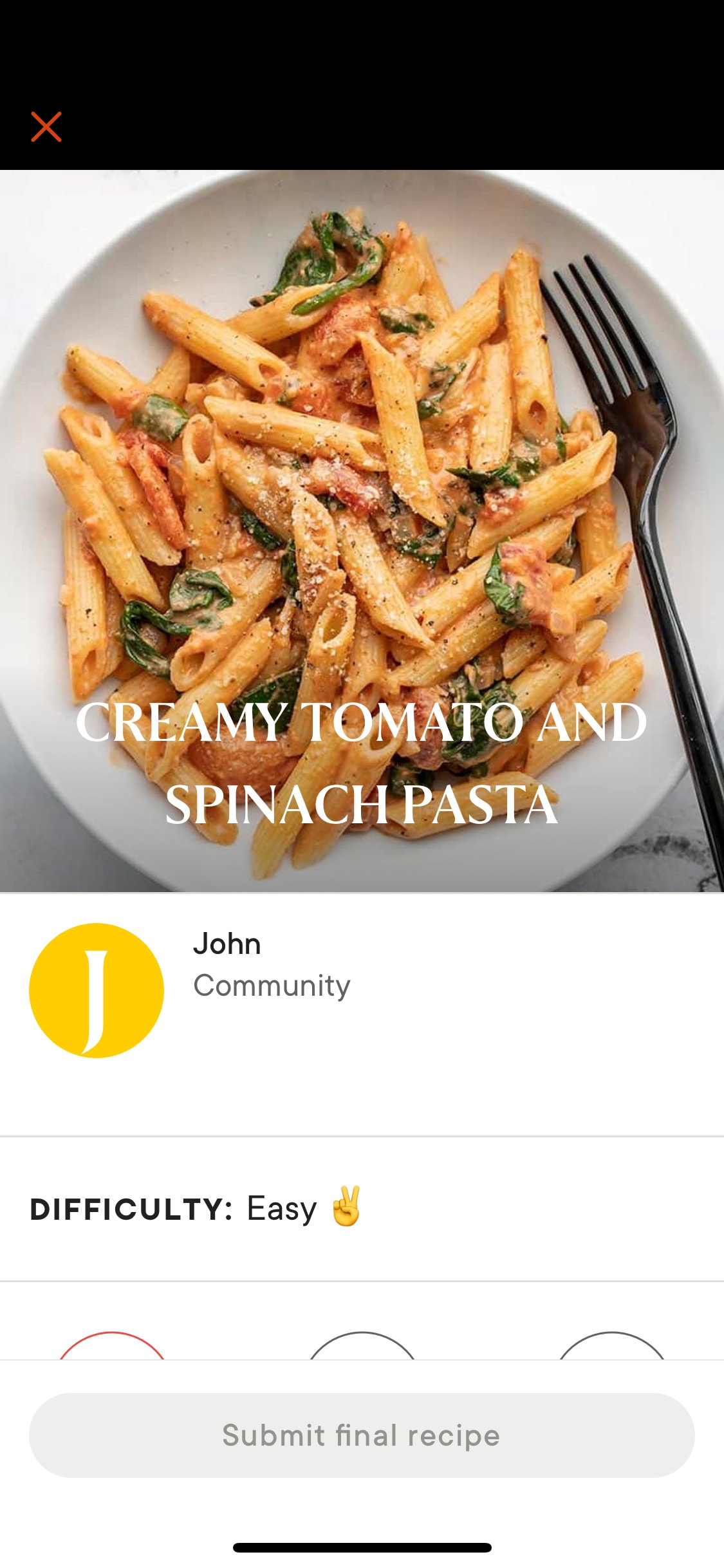

Kitchen Stories - Interface Details
